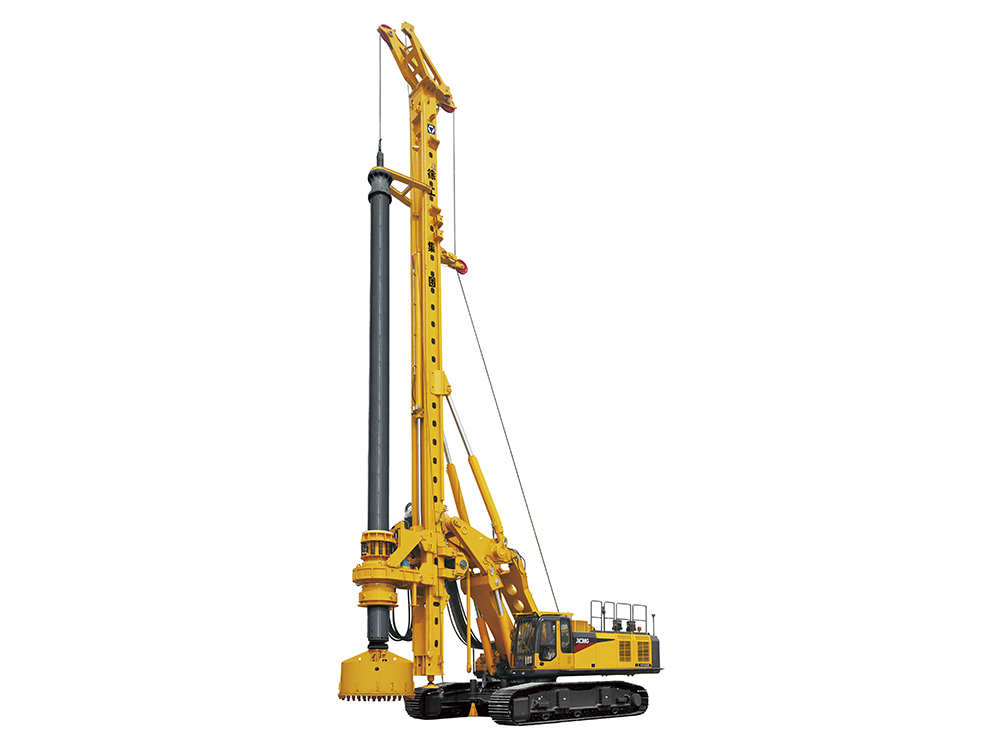

XR400E
发布时间: 2018-08-16 16:22
| 型号 | 序号 | 名 称 | 单位 | 参 数 值 | |
| XR400E | 1 | 最大钻孔直径 | mm | 2,800 | |
| Max. drilling diameter | (卷扬加压2500 mm) | ||||
| 2 | 最大钻孔深度 | m | 选配103，标配69 | ||
| Max. drilling depth | |||||
| 3 | 允许变幅作业范围 | mm | 4,700-5,200 | ||
| Allowable luffing scope (from center of drill rod to slewing center) | |||||
| 4 | 工作状态钻机尺寸（长×宽×高） | mm | 10,995×4,900×26,640 | ||
| Drilling rig dimension in working condition (L × W × H) | |||||
| 5 | 运输状态钻机尺寸（长×宽×高） | mm | 20,755×3,500×3,910 | ||
| Drilling rig dimension in transport condition (L × W × H) | |||||
| 6 | 整机重量（标准配置下，不含钻具） | T | 113 | ||
| Weight of overall unit (standard configuration, excluding drilling tool) | |||||
| 7 | 发动机 | 型号 | / | CUMMINS QSX15-C500 | |
| Engine | Model | ||||
| 额定功率 / 转速 | kW | 373 /(2,100r/min) | |||
| Rated power/speed | |||||
| 8 | 液压系统 | 主泵最大工作压力 | Mpa | 35 | |
| Hydraulic system | Max. working pressure of main pump | ||||
| 副泵最大工作压力 | Mpa | 30 | |||
| Max. working pressure of auxiliary | |||||
| 9 | 动力头 | 最大扭矩 | kN.m | 400 | |
| Rotary drive | Max. torque | ||||
| 转速 | rpm | 7月25日 | |||
| Rotational speed | |||||
| 10 | 加压油缸（标配） | 最大加压力 | kN | 300 | |
| Crowd cylinder | Max. Pushing force | ||||
| 最大提升力 | kN | 400 | |||
| Max. Pulling force | |||||
| 行程 | mm | 6,000 | |||
| Max. stroke | |||||
| 11 | 加压卷扬（选配） | 最大加压力 | kN | 400 | |
| Crowd winch | Max. Pushing force | ||||
| 最大提升力 | kN | 400 | |||
| Max. Pulling force | |||||
| 行程 | mm | 18,000 | |||
| Max. stroke | |||||
| 12 | 主卷扬 | 最大提升力 | kN | 360 | |
| Main winch | Lifting force | ||||
| 最大单绳速度 | m/min | 60 | |||
| Max. speed | |||||
| 13 | 履 带 | 板宽 | mm | 800 | |
| Crawler | Width of crawler plate | ||||
| 外宽（最小-最大） | mm | 4700-5200 | |||
| External width of crawler (min.-max.) | |||||
